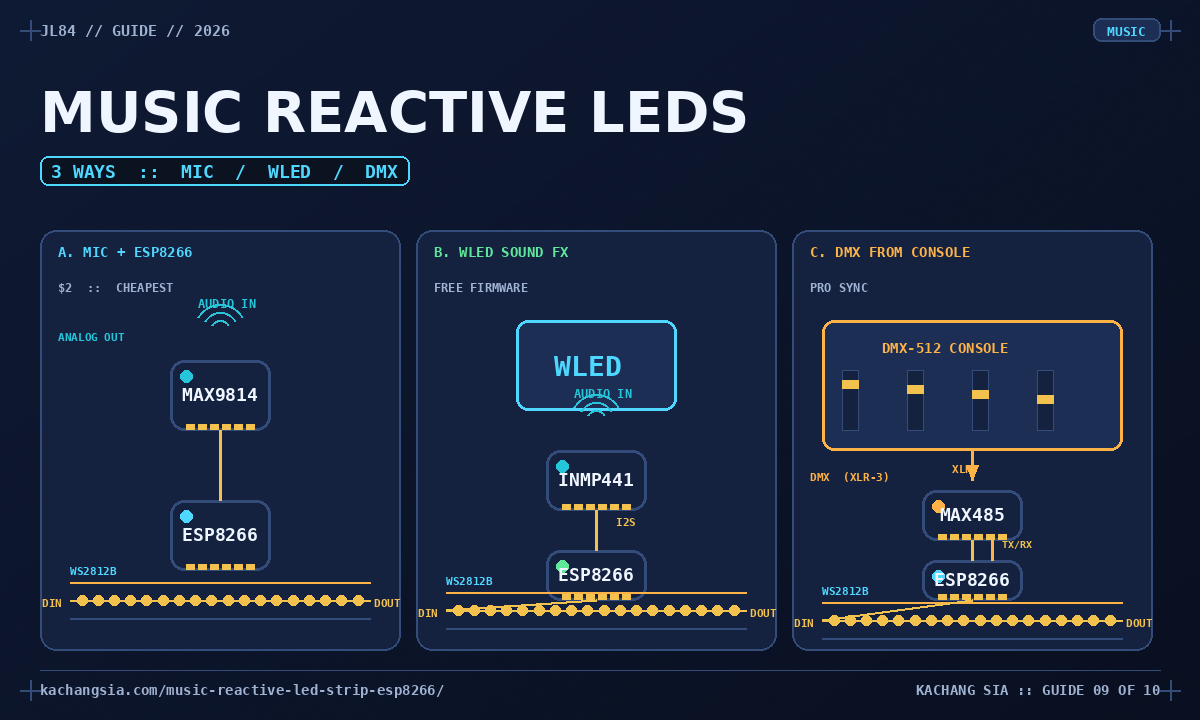

Microphone module — the cheapest build.
An ESP8266 + a $2 MAX9814 or MAX4466 breakout, with a small Arduino sketch, is the cheapest path to music-reactive LEDs. The mic outputs a voltage that swings with the room sound; the ESP8266 reads it via analogRead(A0) and a simple envelope follower (or beat-detection) drives the LED brightness or colour.
MAX9814 vs MAX4466 — which to pick
- MAX9814 — built-in AGC (auto gain control). Easier for beginners; the chip itself compensates for loud vs quiet rooms. Pick this if you don't want to tune gain.
- MAX4466 — lower noise floor and cleaner audio, but no AGC. You set the gain with one resistor. Pick this if you want cleaner beat detection and don't mind tweaking.
Either breakout has three useful pins: VCC, GND, and OUT. Wire them straight to the ESP8266.
MAX9814 / MAX4466 → ESP8266
ESP8266 (NodeMCU) MAX9814 or MAX4466
┌──────────────┐ ┌──────────────┐
│ │ │ │
│ │ │ VCC ────────┼──── ESP 3.3V
│ │ │ │
A0 ─┤ ADC │ │ OUT ────────┼──── ESP A0
│ │ │ │
GND ┤ GND ─────────┼──────────────┤ GND │
└──────────────┘ └──────────────┘
Code reads analogRead(A0) every 5–10ms,
applies an envelope follower (peak + decay),
and maps the result to LED brightness.
A simple envelope follower in Arduino is ~10 lines: track a peak value, decay it slowly each loop, and use the live reading vs the peak to scale the LEDs. No FFT needed for a basic "pulse with the beat" effect.
Sensitivity tuning
Two knobs to tune, both worth learning:
- Hardware gain (MAX4466 only — set by an onboard resistor). Higher gain = more sensitive but also picks up more background noise.
- Software threshold — only count the reading as a beat if it crosses a threshold (e.g. 1.5× the running baseline). Otherwise the strip strobes on every quiet noise.
For the MAX9814 with built-in AGC, the chip handles most of the gain tuning for you. Set the threshold in software, walk it up until the strip reacts to music but not to talking, and you're done.
Honest tradeoff: a microphone reacts to all sound in the room — applause, someone clinking a glass, a kid yelling. For a party room, that's fine. For an event where the lighting must match the music exactly, it's not.
WLED Sound Reactive — free firmware, ready-made effects.
WLED has a community-maintained fork called SR-WLED (Sound Reactive WLED) that adds audio processing on top of the standard WLED effect library. Every existing WLED effect — GEQ, Freqwave, DJ Light, Blur — gains audio reactivity, so you don't have to write the beat-detection yourself.
The fork expects an INMP441 I2S MEMS microphone (~$2–3) wired to four GPIO pins: SCK, WS, SD, and GND. INMP441 is digital, so the analog noise problems of MAX9814 go away.
INMP441 → ESP8266 (SR-WLED)
ESP8266 (NodeMCU) INMP441 I2S mic
┌──────────────┐ ┌──────────────┐
│ │ │ │
│ 3.3V ───────┼──────────────┤ VDD │
│ │ │ │
│ GND ────────┼──────────────┤ GND │
│ │ │ │
│ D1 (GPIO5) ─┼──────────────┤ SCK │
│ │ │ │
│ D3 (GPIO0) ─┼──────────────┤ WS │
│ │ │ │
│ D2 (GPIO4) ─┼──────────────┤ SD │
└──────────────┘ └──────────────┘
SR-WLED's pin mapping differs across forks — always check the README of the build you flash. The official SR-WLED repo lists the current default mapping for ESP8266 and ESP32 separately.
ESP8266 vs ESP32 for SR-WLED
The ESP8266 port works but is tight on RAM. With ~50 KB usable and the WLED pixel buffer plus an FFT, the strip judders past ~120 LEDs at high refresh. ESP32 has 10× more RAM and handles 500+ LEDs without dropping frames.
Honest recommendation: if you want sound-reactive WLED, get an ESP32. The few extra dollars are worth the smoother audio processing. ESP8266 is fine for very short strips or low-refresh-rate effects.
DMX from a DJ console — pro sync, no mic surprises.
If the event has a DJ or live band, the DJ's console (or DMX software like QLC+ or SoundSwitch) is sending DMX512 down a cable that already represents the music's lighting plan. An ESP8266 + a MAX485 module reads those DMX values and executes them. No microphone, no audio processing, no false triggers.
For a wedding or event where the lighting must lock to the music exactly, this is the right approach. The downsides: you need a DMX source (USB-DMX dongle + laptop, or a hardware console), and you need a cable run to the ESP8266.
Wiring is the same as the DMX guide — MAX485 RO → ESP8266 GPIO13 (D7), with 120Ω termination at the last device. Code uses the ESP-DMX library (rdmiller) to read the universe and map channels to relay zones or LED brightness.
This is exactly what the Kachang Sia pack supports — ready-to-flash firmware that locks your lights to the show. See the link below.
Which way should you pick?
| Approach | Cost | Difficulty | Best for |
|---|---|---|---|
| Way 1 — Microphone (analog) | $2 mic + ESP8266 | Easy · Arduino sketch | Party room, lounge, casual use. Reacts to all room sound. |
| Way 2 — SR-WLED (I2S mic) | $3 mic + ESP8266/ESP32 | Medium · flash fork firmware | Home use with proper WLED effects + audio reactivity. |
| Way 3 — DMX sync | $1 MAX485 + ESP8266 | Medium · needs DMX source | Weddings, DJ events, anything where lights must match music. |
The decision rule is straightforward: if there's no DJ or DMX source, pick Way 1 or Way 2. If there is a DMX source, pick Way 3 — it's the most reliable at events.
DMX sync without writing the firmware yourself.
The DMX sync route is exactly what the Kachang Sia Event Lighting Control pack supports — ready-to-flash firmware that locks your lights to the show. Flash, wire the MAX485, set a start address, and the relays track the DJ's console. See the ESP8266 Event Lighting Pack for $19.
👉 See the ESP8266 Event Lighting Pack ($19)Quick answers before you build.
Can an ESP8266 do music-reactive LEDs?
Yes, three ways: a $2 analog microphone module (MAX9814/MAX4466) on the ADC, the WLED sound-reactive firmware fork with an INMP441 I2S mic, or DMX sync from a DJ console. ESP32 is smoother for FFT-based audio, but ESP8266 handles simple envelope-following and beat-detection well for short strips.
Which microphone module should I use for ESP8266 music-reactive?
MAX9814 or MAX4466 are the two most common analog breakout boards. MAX9814 has built-in AGC (auto gain control) — easier for beginners. MAX4466 has lower noise and needs manual gain tuning. Either wires to the ESP8266's A0 pin and reads via analogRead().
What is WLED Sound Reactive?
It's a community fork of WLED (SR-WLED) that adds audio processing — typically using an INMP441 I2S MEMS microphone — so every existing WLED effect becomes audio-reactive. It runs on ESP8266 but ESP32 is more stable; the FFT processing is tight on ESP8266's RAM.
Which approach is best for a wedding or DJ event?
For weddings and events where the lighting must lock to the music, DMX sync from the DJ console is more reliable than any microphone. Mic-based strips react to all sound in the room — applause, someone clinking a glass — not just the music. DMX avoids false triggers entirely.
